| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP.CASE,GEAR 1G460-04024 1G460-04026 | 1 | $578.53 | |||
| 020 | PLUG 15521-96032 15521-96030 | 1 | $3.20 | |||
| 030 | PIN, START SPRIN 15841-56280 | 1 | $4.02 | |||
| 040 | JOINT, PIPE 15841-32290 15241-32290 | 1 | $24.35 | |||
| 050 | WASHER, PLAIN 15841-94010 | 1 | $1.45 | |||
| 060 | SPRING 15841-36950 16851-36950 | 1 | $2.52 | |||
| 070 | SEAT, VALVE 15841-36930 | 1 | $9.60 | |||
| 080 | BALL (CREEP SPEE 15231-36360 07715-03211 | 1 | $0.33 | |||
| 090 | GASKET, GEARCASE 1G962-04130 | 1 | $36.71 | |||
| 100 | Bolt 01023-50168 01023-50618 | 1 | $1.10 | |||
| 110 | BOLT 01023-60650 01023-50650 | 1 | $2.17 | |||
| 120 | BOLT 15841-91010 | 1 | $2.38 | |||
| 130 | BOLT*** 01023-50680 | 1 | $3.52 | |||
| 140 | BOLT 01023-50690 | 1 | $4.16 | |||
| 160 | SEAL, OIL 1G471-04140 | 1 | $33.64 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

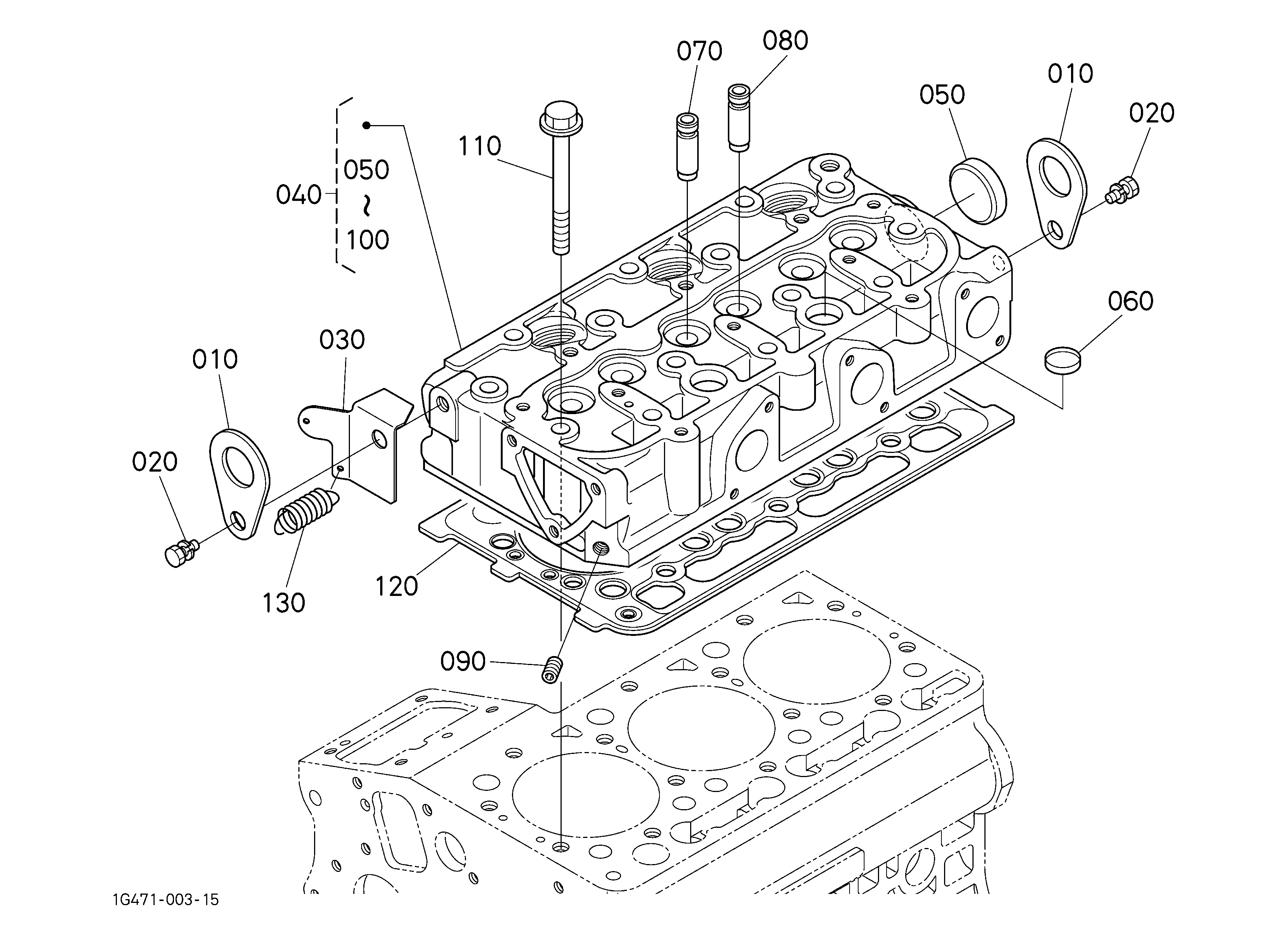

DIAG-000300-86221 000300 CYLINDER HEAD
View Diagram -
DIAG-000100-86221 000100 CRANKCASE
View Diagram -
DIAG-010200-86221 010200 PISTON AND CRANKSHAFT
View Diagram
