Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP.CASE,GEAR 1G820-04025 | 1 | $567.68 | |||
| 020 | PLUG 15521-96032 15521-96030 | 1 | $3.20 | |||
| 030 | STAY 1G820-56282 | 1 | $42.94 | |||
| 035 | SCREW 16861-93310 | 1 | $1.01 | |||
| 040 | JOINT, PIPE 15841-32290 15241-32290 | 1 | $24.35 | |||
| 050 | WASHER, PLAIN 15841-94010 | 1 | $1.45 | |||
| 060 | SPRING 1J092-36950 | 1 | $5.48 | |||
| 070 | VALVE,RELIEF 1J050-36930 | 1 | $21.95 | |||
| 100 | GASKET, GEARCASE 1G820-04130 | 1 | $30.59 | |||
| 110 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 120 | BOLT 01023-60650 01023-50650 | 1 | $2.17 | |||
| 130 | BOLT 15841-91010 | 1 | $2.38 | |||
| 140 | BOLT*** 01023-50680 | 1 | $3.52 | |||
| 150 | BOLT 01023-50690 | 1 | $4.16 | |||
| 170 | SEAL,OIL 1J094-04140 | 1 | $17.16 | |||
| 180 | Oil Filter Cartridge for BX, RTV & ZG Series HH150-32430 HH1J0-32430 | 1 | $14.90 | |||
| 190 | Revolution Sensor 5H911-42622 1G171-59660 | 1 | $91.65 | |||
| 200 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

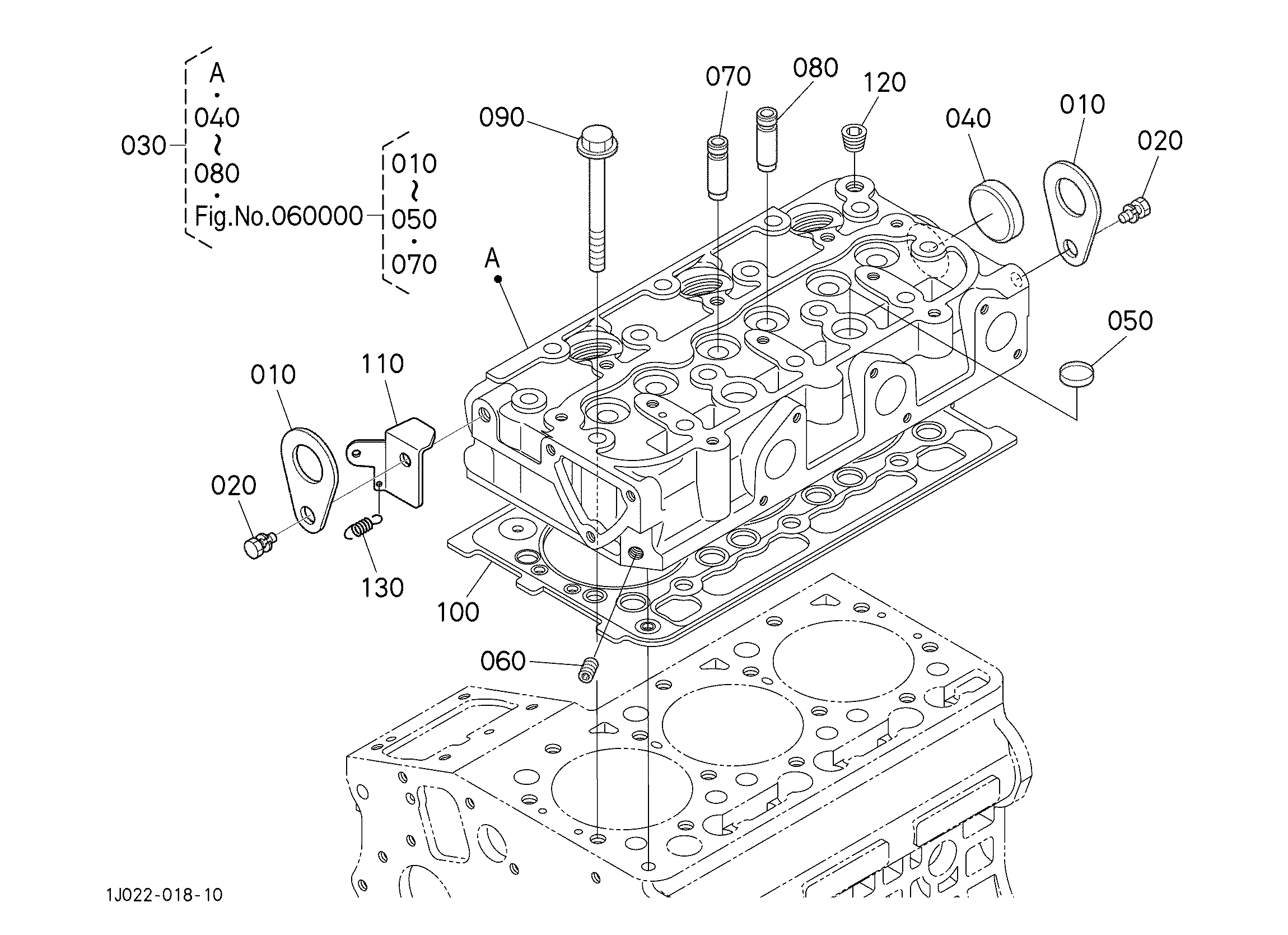

DIAG-000300-342269 000300 CYLINDER HEAD
View Diagram -
DIAG-000500-342269 000500 HEAD COVER
View Diagram -

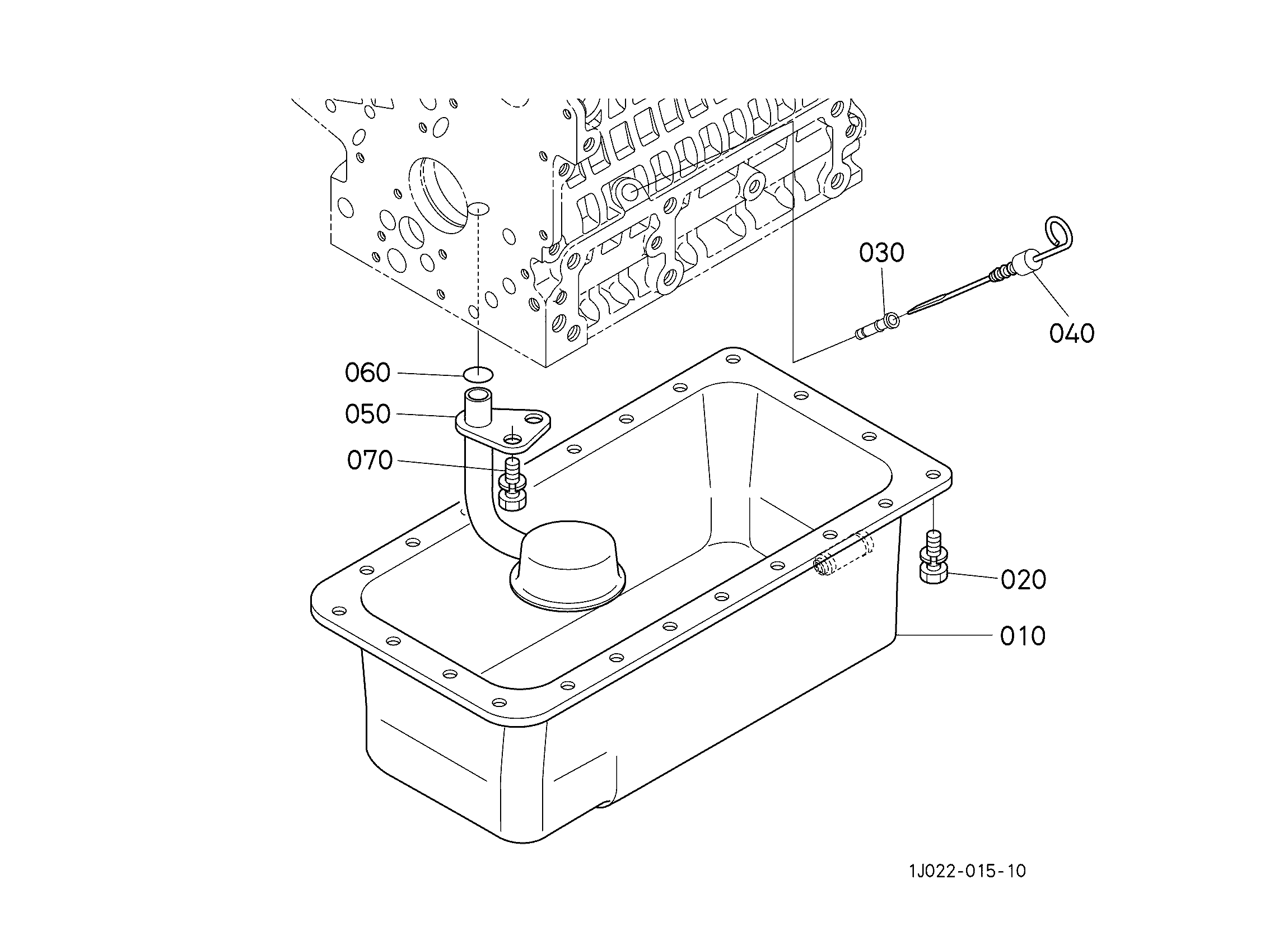

DIAG-000200-342269 000200 OIL PAN
View Diagram
