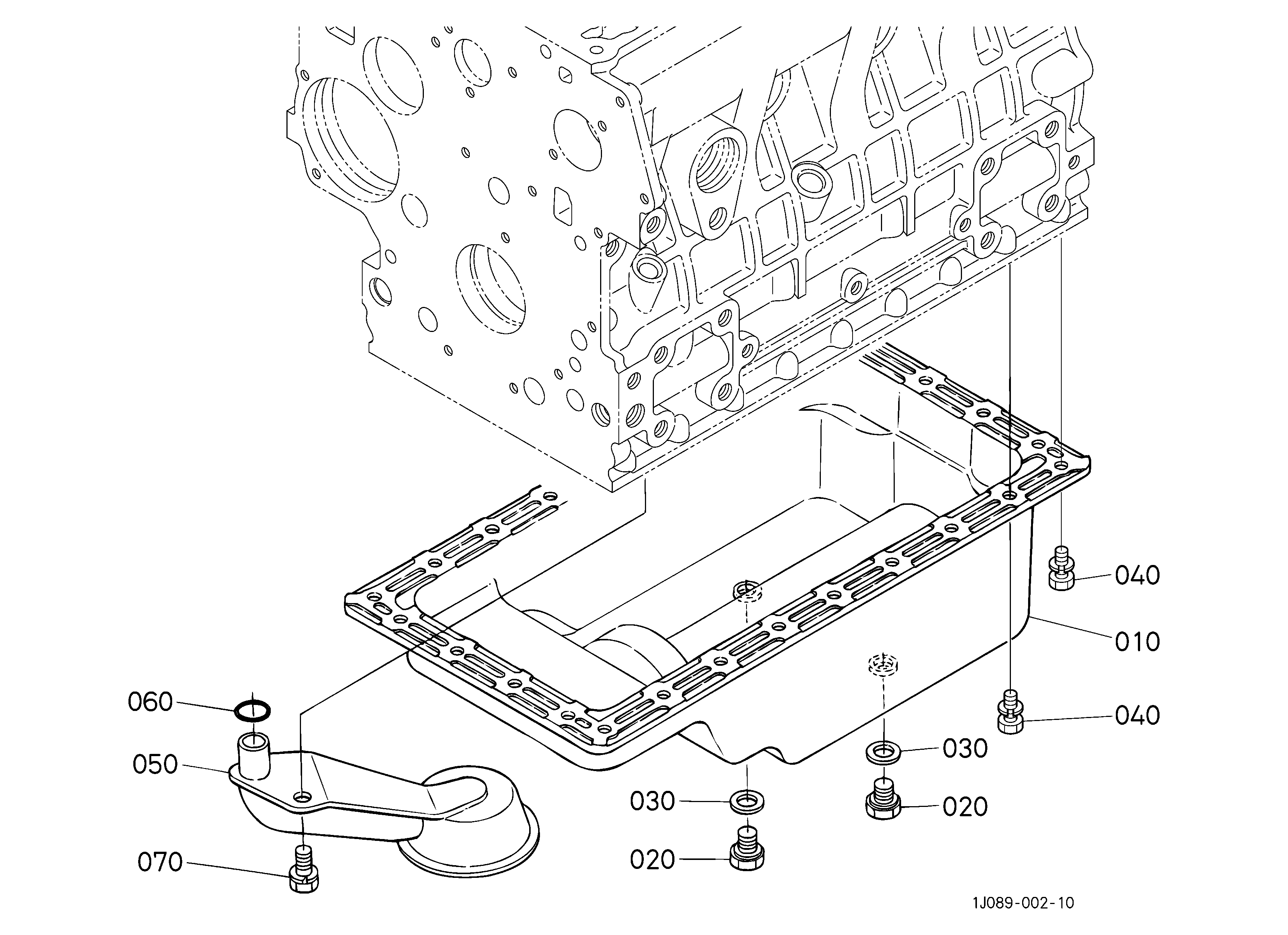

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP GEARCASE 1J089-04022 | 1 | $634.25 | |||
| 020 | PLUG 17331-96040 16241-96020 | 1 | $5.99 | |||
| 030 | PLUG 15521-96022 15521-96020 | 1 | $3.35 | |||
| 040 | WASHER, PLAIN 04011-60180 04011-50180 | 1 | $1.11 | |||
| 050 | JOINT, PIPE 15841-32290 15241-32290 | 1 | $24.35 | |||
| 060 | SPRING 1J050-36950 | 1 | $5.99 | |||
| 070 | VALVE,RELIEF 1J050-36930 | 1 | $21.95 | |||
| 080 | ASSY ROTOR,OIL P 1J050-35070 | 1 | $224.82 | |||
| 090 | COVER,OIL PUMP 1J050-35132 | 1 | $7.23 | |||
| 100 | Binding Head Screw 03017-50614 | 1 | $0.62 | |||
| 110 | GASKET, GEAR CAS 16264-04130 16264-04132 | 1 | $27.68 | |||
| 120 | BOLT 1J095-91010 | 1 | $1.35 | |||
| 120 | BOLT * 01023-50645 | 1 | $2.07 | |||
| 130 | BOLT 1J095-91020 | 1 | $1.76 | |||
| 130 | BOLT 01023-60650 01023-50650 | 1 | $2.17 | |||
| 140 | BOLT 01023-60655 01023-50655 | 1 | $2.26 | |||
| 140 | BOLT 1J095-91030 | 1 | $1.76 | |||
| 150 | BOLT 1J095-91040 | 1 | $1.76 | |||
| 150 | BOLT 01023-50665 | 1 | $3.12 | |||
| 160 | BOLT 1J095-91050 | 1 | $1.76 | |||
| 160 | BOLT 16241-91040 | 1 | $1.53 | |||
| 170 | STUD 16245-91530 | 1 | $3.31 | |||
| 180 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 190 | Engine Gear Case Gasket 16241-04212 | 1 | $11.41 | |||
| 200 | PLUG, OIL FILLER 32240-21410 E9151-33140 | 1 | $9.24 | |||
| 210 | O RING 1J001-96770 | 1 | $10.72 | |||
| 220 | COVER, GEARCASE 16264-83340 16264-83342 | 1 | $11.58 | |||
Showing 1 to 27 of 27 parts
