| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP CRANKCASE 1G424-01010 1G424-01013 | 1 | $3,882.01 | |||
| 020 | PLUG 15521-96022 15521-96020 | 1 | $5.15 | |||
| 030 | PLUG 15521-96032 15521-96030 | 1 | $3.09 | |||
| 035 | PLUG 34150-16640 06312-10020 | 1 | $5.15 | |||
| 040 | PLUG,EXPANSION 17391-96160 | 1 | $0.66 | |||
| 050 | PLUG, EXPANSION 16271-96160 | 1 | $1.56 | |||
| 060 | Sealing Plug 15221-03383 15221-03380 | 1 | $5.90 | |||
| 070 | Cap. Sealing 15221-03392 15221-03390 | 1 | $8.57 | |||
| 080 | CAP, SEALING 15261-03370 | 1 | $3.61 | |||
| 090 | PLUG, WEIGHT SHA 1A091-03380 | 1 | $22.56 | |||
| 100 | PIN 05011-00408 05012-00408 | 1 | $0.60 | |||
| 110 | PIN 05012-00609 | 1 | $0.80 | |||
| 120 | PIN 05011-00612 05012-00612 | 1 | $0.80 | |||
| 130 | PIN 05012-01018 | 1 | $1.51 | |||
| 140 | PIN, PIPE 15221-33650 | 1 | $4.60 | |||
| 155 | METAL WEIGHT SHAFT 1 1A091-26990 | 1 | $20.87 | |||
| 156 | METAL WEIGHT SHA 1A091-26980 | 1 | $20.38 | |||
| 157 | METAL WEIGHT SHA 1A091-26970 | 1 | $14.24 | |||
| 160 | PLUG 1G896-33610 | 1 | $3.19 | |||
| 160 | PLUG*** 15469-33610 | 1 | $10.53 | |||
| 170 | Copper Gasket 15451-96730 15021-33660 | 1 | $17.71 | |||
| 180 | PLUG, OIL FILLER 16427-33142 Discontinued | 1 | $6.01 | |||
| 180 | PLUG, OIL FILTER 16427-33140 1J860-33140 | 1 | $8.65 | |||
| 190 | FLANGE,OIL FILLE 1A021-33110 1A021-33112 | 1 | $21.06 | |||
| 200 | GASKET, PUMP COV 1A021-51660 1A021-51663 | 1 | $6.23 | |||
| 210 | Bolt 01023-50168 01023-50618 | 1 | $1.10 | |||
| 220 | ASSY PUMP, OIL * 1E013-35010 1E013-35013 | 1 | $174.46 | |||
| 230 | GASKET, OIL PUMP 15296-35150 1A021-35150 | 1 | $2.01 | |||
| 240 | BOLT 01023-60650 01023-50650 | 1 | $2.17 | |||
| 250 | GEAR, OIL PUMP D 19202-35660 1G896-35660 | 1 | $61.55 | |||
| 260 | KEY, FEATHER 05712-00410 | 1 | $1.91 | |||
| 270 | NUT, FLANGE 15221-35680 15221-35682 | 1 | $4.60 | |||
| 280 | BRACKET, CABLE 1A021-57483 | 1 | $12.99 | |||
| 290 | Bolt 01023-50622 | 1 | $1.29 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-

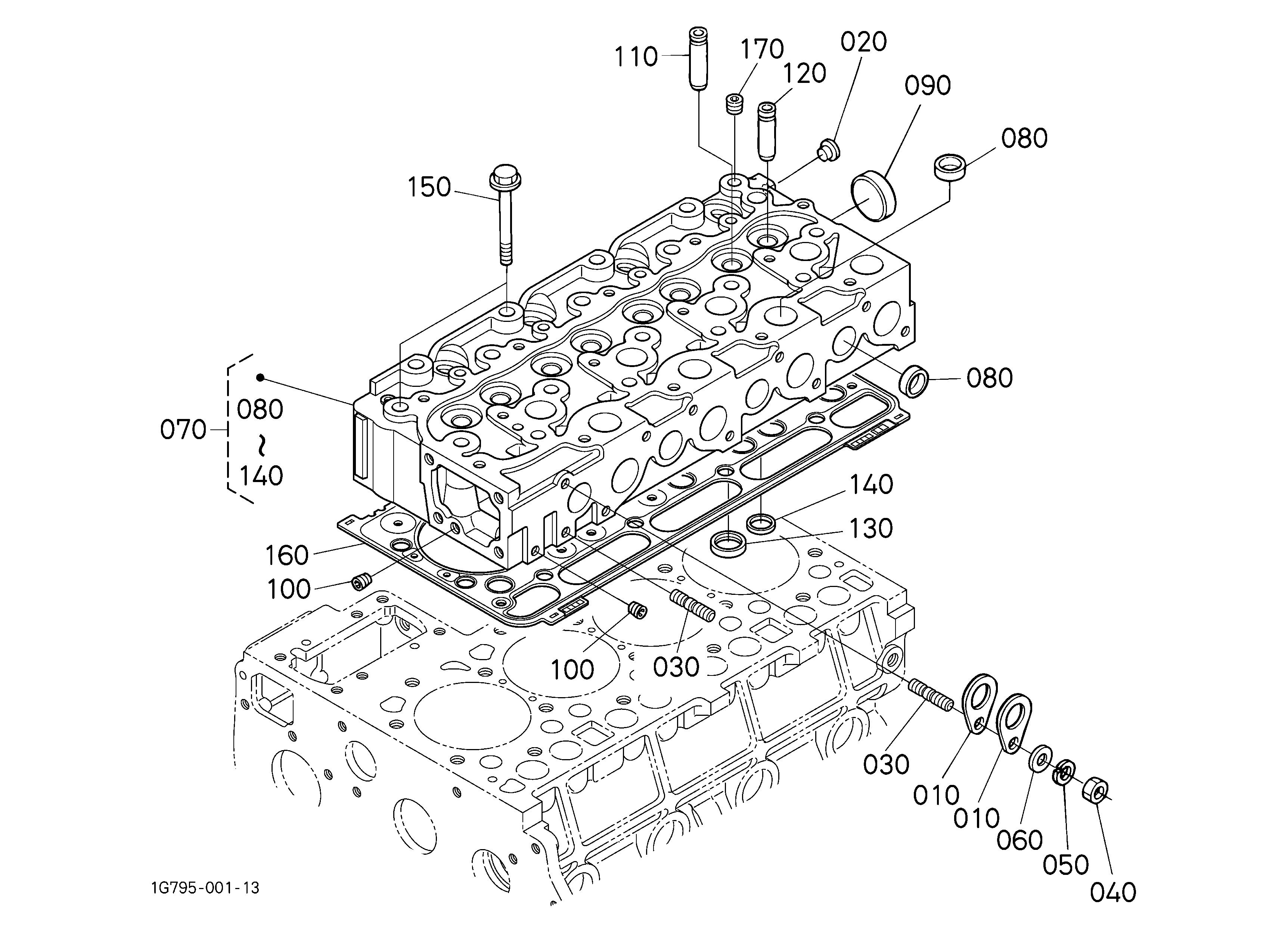

DIAG-000302-85406 000302 CYLINDER HEAD
View Diagram -

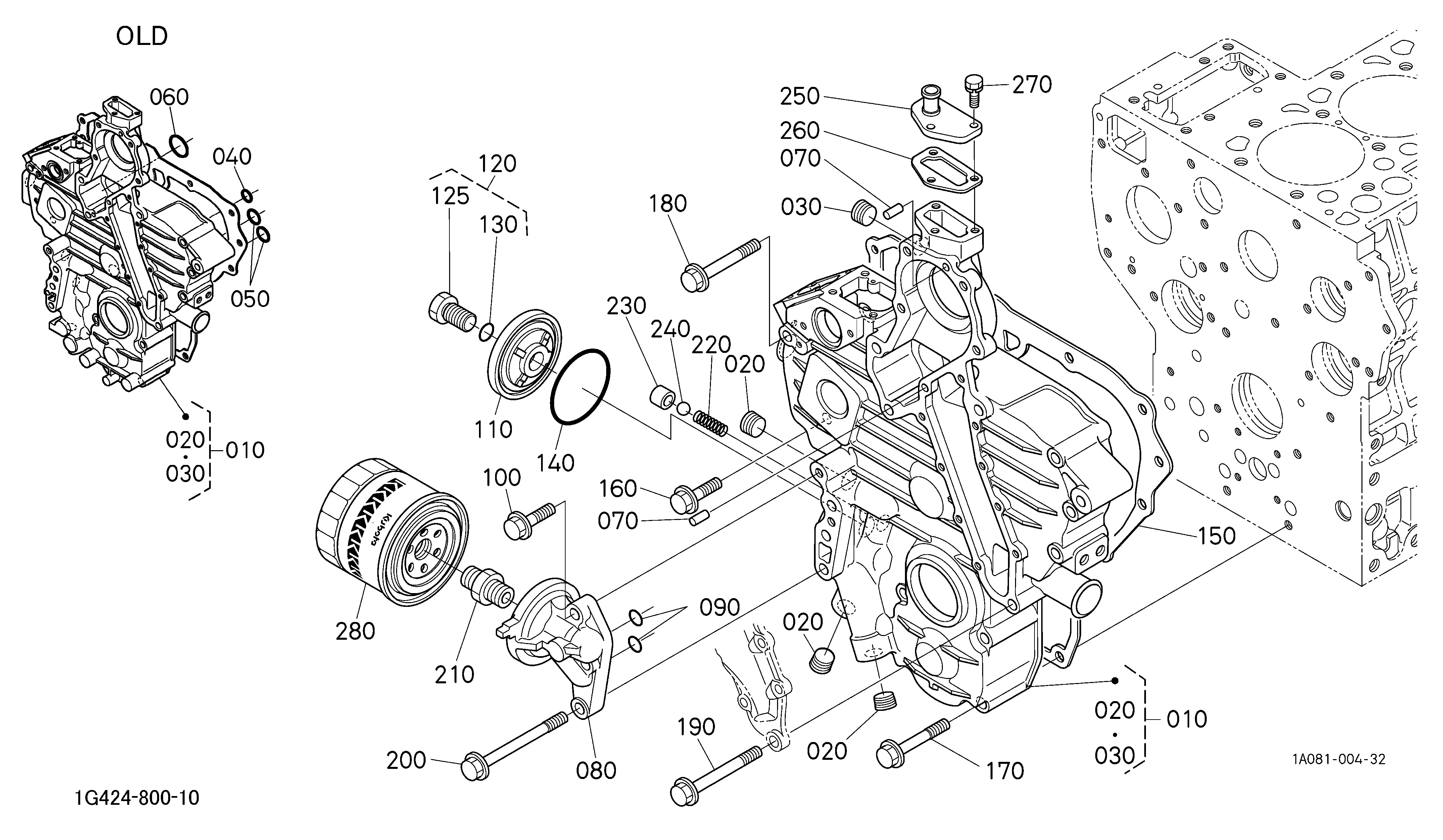

DIAG-000401-85406 000401 GEAR CASE
View Diagram -

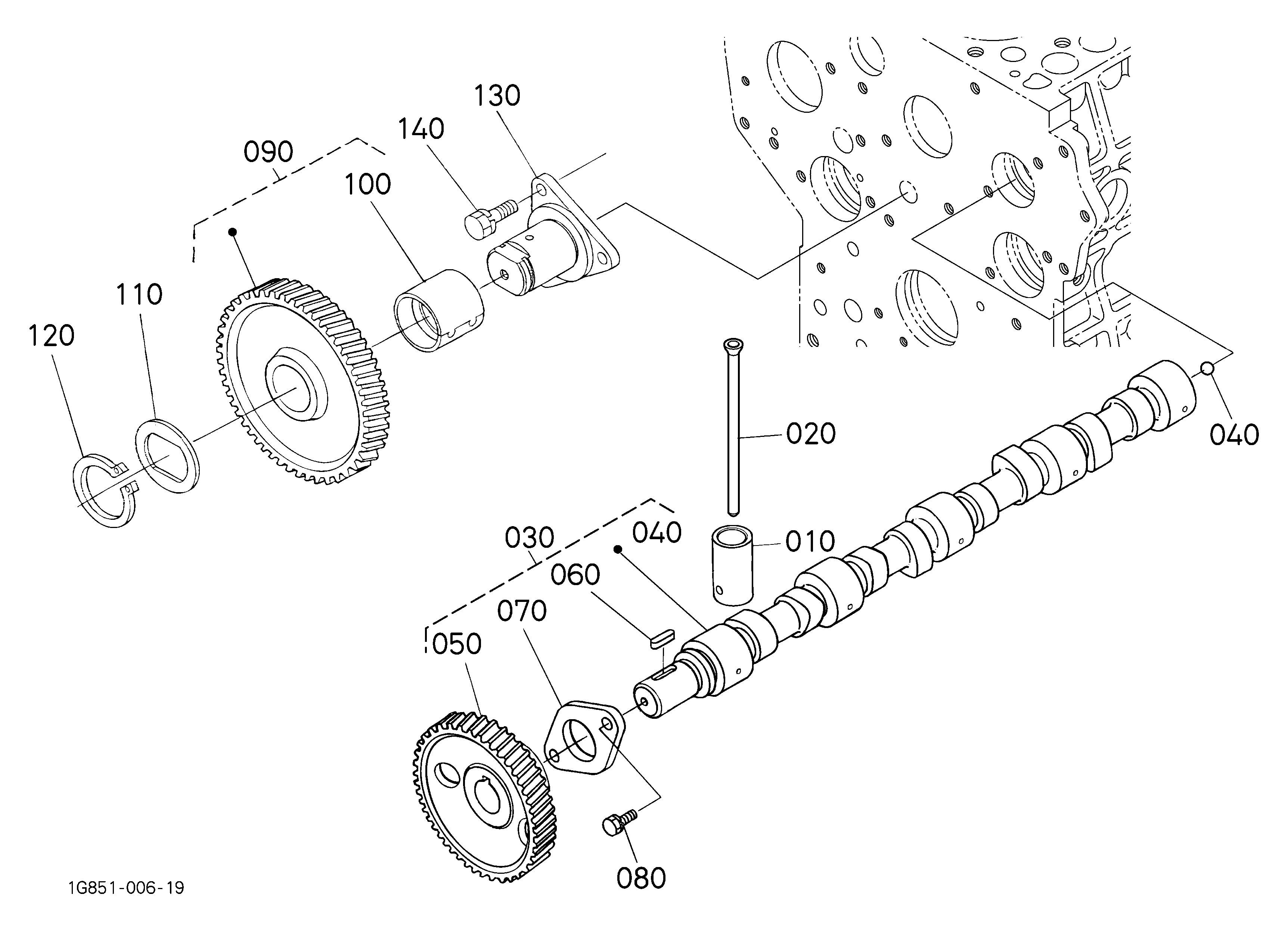

DIAG-010100-85406 010100 CAMSHAFT AND IDLE GEAR SHAFT
View Diagram
