Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP CRANKCASE 1G470-01020 1G470-01023 | 1 | $2,916.20 | |||
| 010 | COMP CRANKCASE 1G470-01019 Discontinued | 1 | $1,831.74 | |||
| 010 | COMP.CRANKCASE 1G470-01026 | 1 | $2,900.62 | |||
| 020 | CAP, SEALING 16851-96260 | 1 | $6.95 | |||
| 030 | CAP, SEALING 16851-96270 | 1 | $6.35 | |||
| 040 | CAP, SEALING 06311-80025 06311-85025 | 1 | $3.15 | |||
| 050 | Engine Sealing Cap 15451-96270 | 1 | $6.23 | |||
| 060 | PLUG 15261-96012 15261-96010 | 1 | $2.55 | |||
| 070 | PLUG 15521-96022 15521-96020 | 1 | $3.35 | |||
| 080 | PLUG 15521-96032 15521-96030 | 1 | $3.20 | |||
| 090 | PLUG, EXPANSION 06311-75040 15261-96160 | 1 | $1.32 | |||
| 100 | PIN, STRAIGHT 16225-94510 05012-00508 | 1 | $1.06 | |||
| 110 | PIN, STRAIGHT 16221-94530 05012-00814 | 1 | $1.31 | |||
| 120 | PIN, PIPE 15221-33650 | 1 | $4.60 | |||
| 130 | PIN, PIPE 15231-33960 | 1 | $6.12 | |||
| 130 | PIN, PIPE 17331-59190 | 1 | $6.42 | |||
| 150 | COVER, FUEL CAMS 16851-16210 16851-16212 | 1 | $20.92 | |||
| 170 | PLUG 06311-55020 | 1 | $4.39 | |||
| 180 | WASHER 04717-01320 | 1 | $3.16 | |||
| 190 | ASSY PUMP, OIL 16851-35010 16851-35012 | 1 | $171.16 | |||
| 200 | GASKET 16851-35150 16851-35152 | 1 | $1.85 | |||
| 210 | BOLT 15841-91050 | 1 | $7.68 | |||
| 220 | GEAR, OIL PUMP D 15841-35660 1G687-35662 | 1 | $22.70 | |||
| 230 | Feather Key 05712-00408 | 1 | $1.51 | |||
| 240 | Flange Nut 02771-50100 | 1 | $3.06 | |||
| 240 | Flange Nut 02783-50100 | 1 | $6.24 | |||
| 250 | Engine Oil Pressure Sender Switch 15531-39010 1A024-39010 | 1 | $37.17 | |||
Showing 1 to 27 of 27 parts
Related Assemblies
-

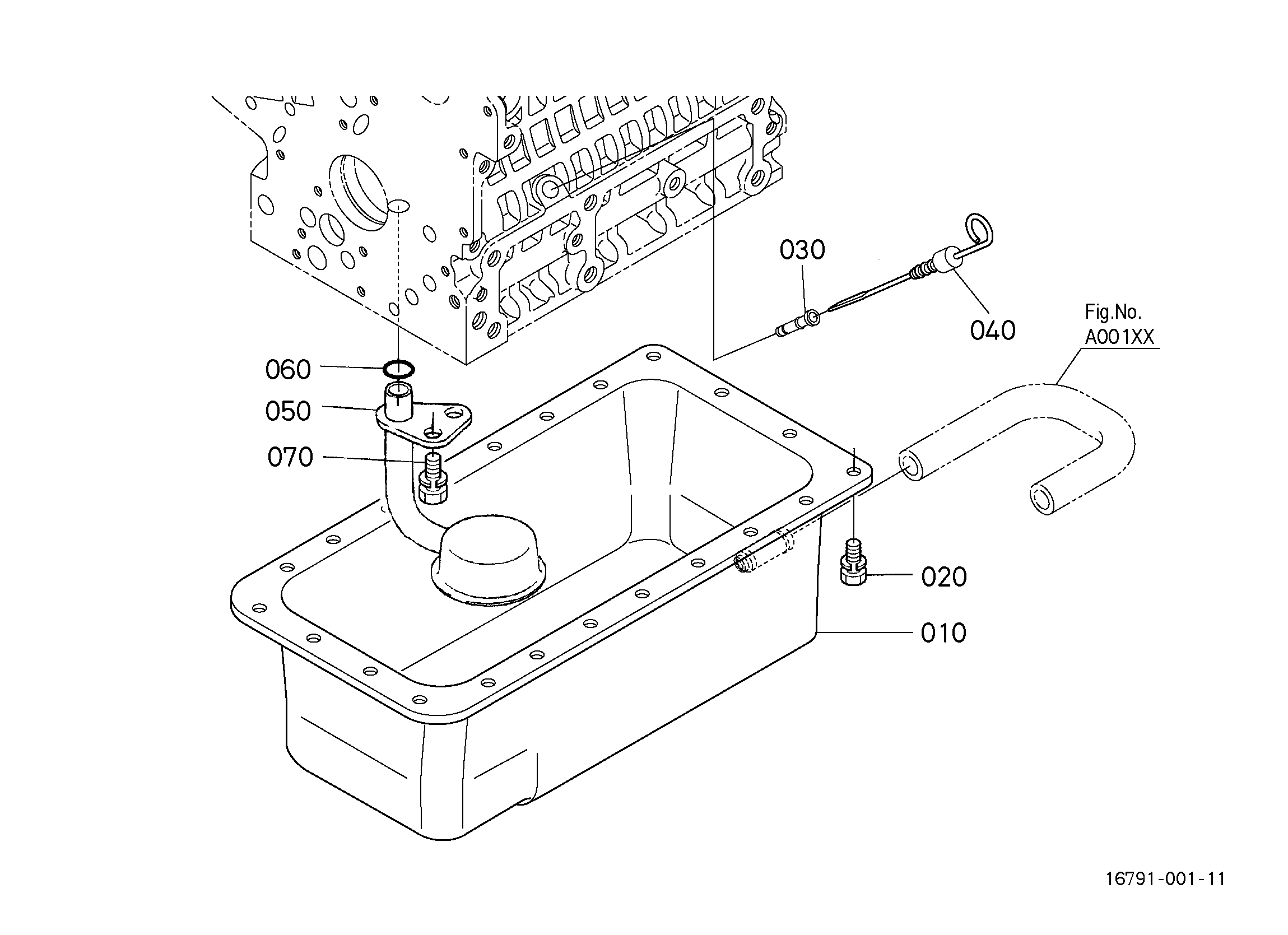

DIAG-000200-86342 000200 OIL PAN
View Diagram -

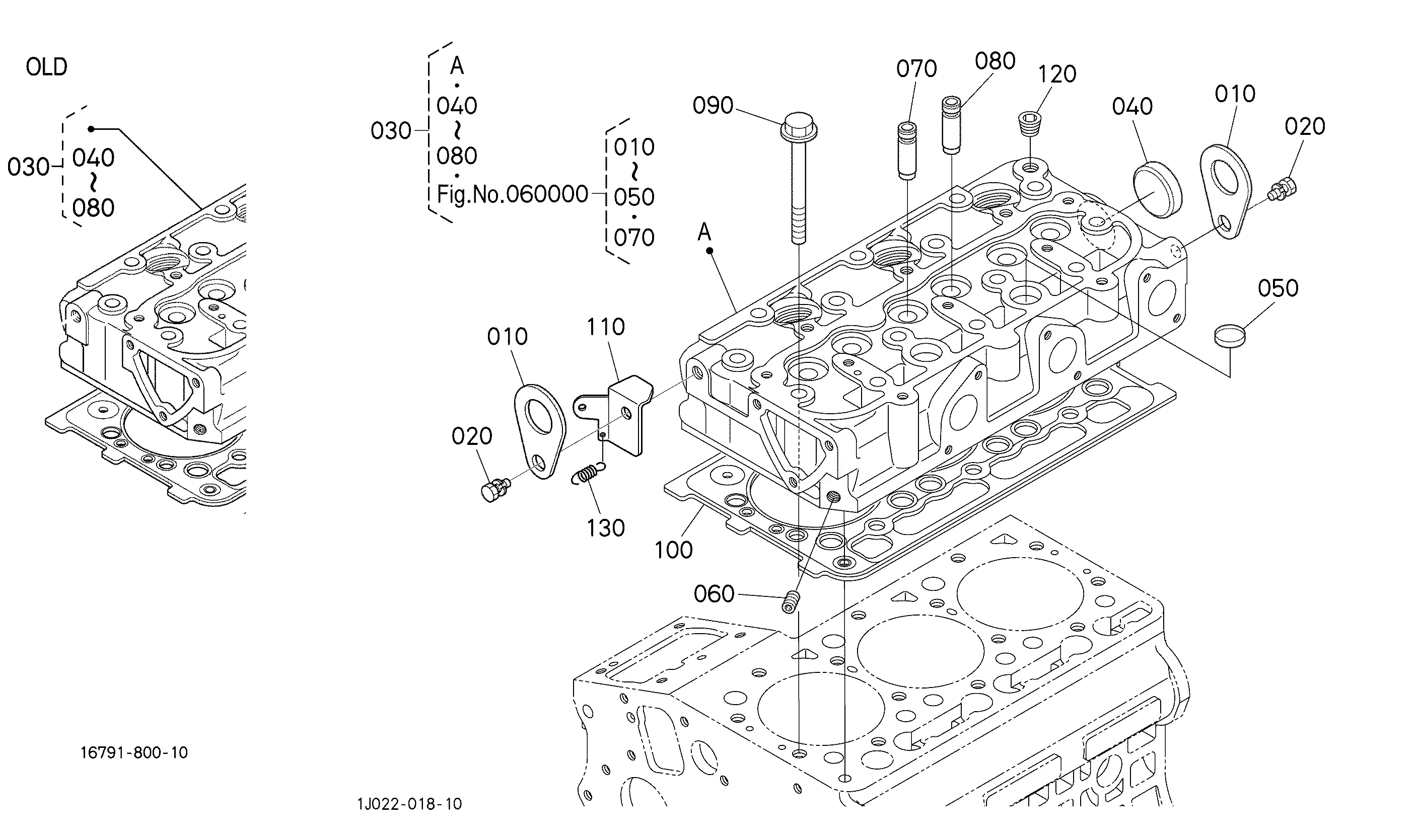

DIAG-000300-86342 000300 CYLINDER HEAD
View Diagram -
DIAG-000400-86342 000400 GEAR CASE
View Diagram
